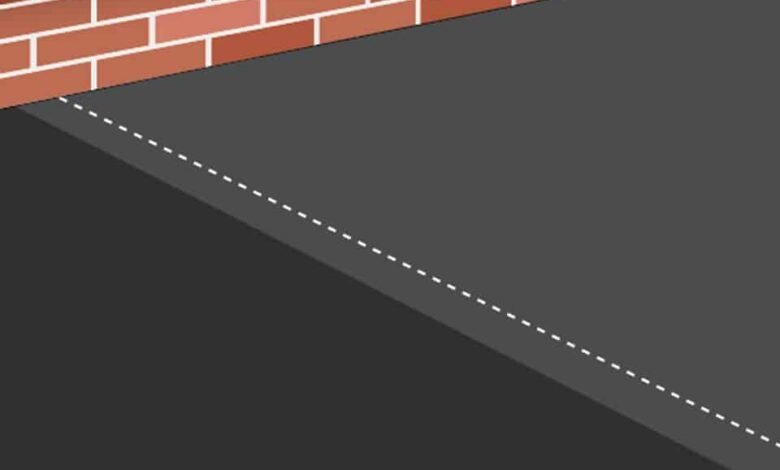

If you have ever stood on a flat commercial roof, you probably noticed those metal strips running along the top edge of the walls. Those are termination bars, or term bars for short. They might look like simple pieces of hardware, but they are actually the unsung heroes of your roofing system. Their entire job is to pin the roofing membrane against the wall to keep water from sliding down behind it. When these bars start to pull away or separate, you are looking at a ticking clock before a major leak happens. Finding a reliable roof repair midway service early on can save you from a total disaster, but it helps to understand why this happens in the first place.
Thermal Expansion and Contraction
Commercial roofs are basically giant heat sponges. During a typical summer day, the surface temperature of a black EPDM or even a white TPO roof can swing by a hundred degrees. This constant heating and cooling causes the roofing membrane to grow and shrink. Metal termination bars also expand and contract, but they do so at a different rate than the rubber or plastic membrane.
Over several years, this creates a tug of war. The membrane pulls at the fasteners holding the bar in place. Eventually, the metal can bow, or the holes can wallow out. This creates small gaps between the bar and the wall. Once that seal is broken, it only takes one heavy rainstorm for water to find its way into the building envelope.
Poor Fastener Choice or Spacing
A termination bar is only as strong as the screws holding it to the wall. One of the most common causes of separation is simply using the wrong fasteners. If a contractor uses standard wood screws for a concrete block wall, those screws are going to vibrate loose.
Spacing is another big issue. Most manufacturers recommend placing a fastener every six to eight inches. To save time, some installers might skip every other hole and space them twelve inches apart. This leaves too much room for the bar to flex. When the wind picks up or the membrane shrinks, the bar lacks the rigid support it needs to stay flush against the masonry. You end up with a wavy line instead of a tight seal.
Deteriorating Sealant and Caulk
The metal bar itself is not actually waterproof. The real magic happens with the bead of sealant applied along the top edge, often called a water cut-off mastic or a termination caulk. Even the best industrial sealants have a lifespan. They are exposed to direct sunlight and harsh weather every single day.
As the caulk ages, it becomes brittle and loses its elasticity. It starts to crack and flake away. Once the sealant fails, water can get trapped behind the bar. If you live in a climate where it freezes, that trapped water turns to ice and expands. This creates a literal pry bar effect that forces the termination bar away from the wall. This cycle of freezing and thawing is one of the fastest ways to ruin a roof edge.
Structural Movement and Settling
Buildings are not static objects. They shift, settle, and vibrate. Whether it is from heavy machinery running inside the warehouse or the ground settling under the foundation, the walls of a commercial building are always moving slightly.
If the wall moves but the roof deck stays put, that stress is concentrated right at the termination bar. This tension can actually shear off the heads of the fasteners or pull them straight out of the substrate. You will often see this on older buildings where the brickwork or parapet walls have started to lean or crack over time. When the wall moves, the termination bar is often the first point of failure.
Improper Membrane Relaxation
When a crew installs a new roof, the membrane comes off a tightly wound roll. It has a lot of built-in tension. If the installers pull the membrane too tight and immediately screw down the termination bar without letting the material relax, the membrane will eventually try to pull back toward the center of the roof.
This is known as bridging. The membrane acts like a guitar string, pulling with incredible force against the bar. Over time, that constant tension will win. It will either tear the membrane at the fastener holes or pull the bar off the wall entirely. It is a classic case of rushing the job and paying for it later with a leaky wall.
Final Word
Keeping an eye on your roof edges is a vital part of building maintenance. If you notice gaps or bowing, calling for a professional roof repair midway service is the smartest move you can make before the next big storm. Catching a loose termination bar today is much cheaper than replacing water-damaged insulation and drywall tomorrow. Proper maintenance keeps your building dry and your business running smoothly.
